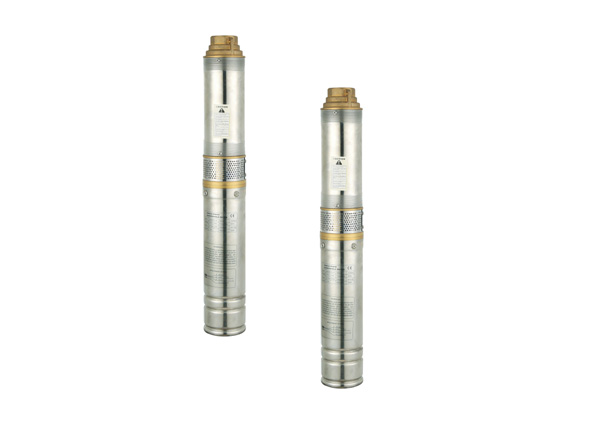

3-4' Deep Well Submersible Pump
-APPLICATLONS
Pumping water,moving water in fountain,rain irrigation,
feeding pressure system,filling or emptying tank
-FEATURES
Shaft,jacket and hydraulics in stainless steel
Brass impeller
Insulation class B
Protection grade:IP68
TECHNICAL DATA:
-Pump
Qmin:2.4(m3/h)
Capacity from 0.5 to 1.5(m3/h)
Total head from 1 15 to 118(m)
Highest temperatue of liquid:35 ℃
-Main uses
For3" -4" wells
Purnping clear water in to:Detached bouses-Country
houses and farms-Cottages.
Moving water in fountains.
Rain imigation.
Feeding pressuresystems.
Filling and emptying tanks.
-Motor
continuous service
Power:0.75-2 Hp????? Single phase
?????? 0.55-1.5kw
Insulation class:B
Protection grade:IP58
-Construction features
Shalt.jacked and hydraulics in stainless steel.
Brass impeller.
Brass impeller.
Built-in non-return valive
Thermoplastic parts.
Oil-cooled molor with compensating diaphragm.
Graphite mechanlcal
seal protected by sand proof ring
4SKm 100 parts non-toidc and non-poliuting.
Thanks to special construction teatures.both installation and maintenance
of 4SKm 100 are tast and easy.
PERFORMANCE TABLE:
| Type Single phase 110-120V 60Hz |
Motor Power |
Capacity and head |
Dimensions |
Controller |
| m3/h |
0 |
0.5 |
1 |
1.5 |
2 |
2.6 |
Length |
Weight |
Curront max |
Capacllon max |
| L/min |
0 |
8.3 |
16.6 |
25 |
33.3 |
43 |
mm |
kg |
A |
(uf) |
| KW |
Hp |
Imp.g.p.m |
0 |
1.8 |
3.6 |
5.5 |
7.3 |
9.4 |
| 3SKm 75 |
0.55 |
78 |
Head(m) |
34 |
29 |
24 |
18 |
12 |
3 |
519 |
? |
5 |
25 |
| 3SKm 100 |
0.75 |
100 |
50 |
42 |
32 |
22 |
14 |
3 |
589 |
? |
6 |
30 |
| 4SKm 100 |
0.75 |
100 |
61 |
50 |
38 |
27 |
15 |
4 |
485 |
15.5 |
6 |
30 |
| 4EKm 100 |
? |
13.1 |
| 4SKm 100 |
? |
150 |
99 |
79 |
59 |
39 |
19 |
4 |
552 |
16.5 |
10 |
40 |
| 4EKm 150 |
? |
13.9 |
| 4SKm 200 |
1.5 |
200 |
140 |
115 |
90 |
66 |
43 |
4 |
606 |
? |
14 |
70 |
