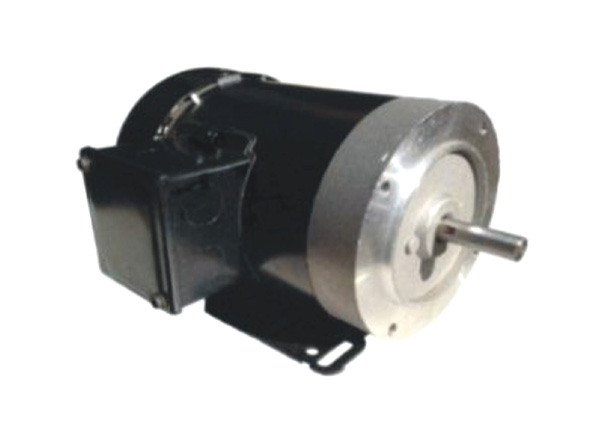

General Purpose,56C Three Phase,
Totally Enclosed Fan Cooled,
Bolt on Removable Base
Applications:
Machine tools,gear reducers,pumps,or
any direct coupled or belt drive appplications
Features:
Ball Bearings,1.15 Service Factor,(1.0 S.F.@208v)
Class F Insulation Insulation,Rolled Steel,
Bolt on Removable base.
Rated 60/50 hertz,190/380 @ next lower horsepower
Inverter duty 4:1CT/10:1VT
UNIVERSAL SERLES
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230V |
Approx Wt.(1bs) |
“C”DIM |
Notes |
| 0.33 |
3600 |
56C |
208-230/460 |
3233C |
﹩173 |
57 |
0.8 |
22 |
11 |
2 |
| 1800 |
56C |
208-230/460 |
3433C |
﹩201 |
67 |
1.1 |
23 |
12.4 |
2 |
| 0.50 |
3600 |
56C |
208-230/460 |
3250C |
﹩192 |
62 |
1 |
24 |
11 |
2 |
| 1800 |
56C |
208-230/460 |
3450C |
﹩213 |
69 |
1.5 |
25 |
12.4 |
2 |
| 0.75 |
3600 |
56C |
208-230/460 |
3234C |
﹩209 |
67 |
1.3 |
28 |
11 |
2 |
| 1800 |
56C |
208-230/460 |
3434C |
﹩231 |
71 |
1.6 |
26 |
12.4 |
2 |
| 1 |
3600 |
56C |
208-230/460 |
3201C |
﹩224 |
69 |
1.6 |
28 |
11 |
2 |
| 1800 |
56C |
208-230/460 |
3401C |
﹩258 |
73 |
1.9 |
30 |
12.4 |
2 |
| 1.5 |
3600 |
56C |
208-230/460 |
3215C |
﹩253 |
72 |
2.3 |
31 |
11.4 |
2 |
| 1800 |
56C |
208-230/460 |
3415C |
﹩327 |
74 |
2.4 |
36 |
12.4 |
2 |
| 2 |
3600 |
56C |
208-230/460 |
3202C |
﹩280 |
75 |
2.8 |
36 |
12.4 |
2 |
| 1800 |
56C |
208-230/460 |
3402C |
﹩385 |
77 |
3.6 |
43 |
13.8 |
2 |
| 3 |
3600 |
56HC |
208-230/460 |
3203C |
﹩400 |
78 |
4.5 |
41 |
13 |
2 |
| 1800 |
56HC |
208-230/460 |
3403C |
﹩397 |
80 |
4.6 |
48 |
14.8 |
2 |
| 5 |
3600 |
56HC |
208-230/460 |
3205C |
﹩436 |
82 |
6 |
47 |
13.8 |
2 |
2 Removable 56HC,143TC Combination Base,12 mounting holes for Mounting Flexxibility
