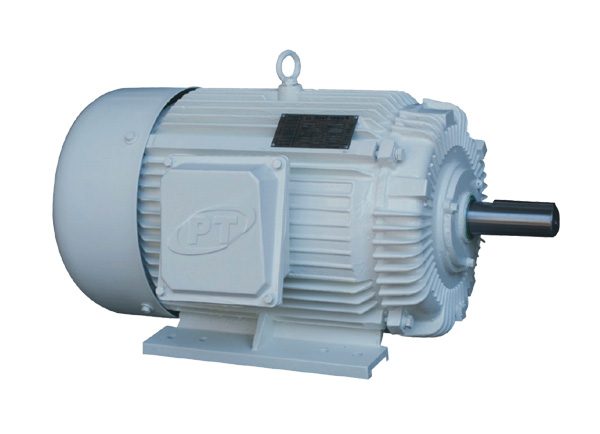

Oil Field PUMP Jack Motors Extra High Efficiency?
5-8% Slip Design D TEFC,1.15 SF
Applications:
Beam Pump Jacks,or any application that requires extra high torque
Features:
TEFC,230-460/496 volt;12lead,5-8%.Slip
NEMA design D for extra high starting and breakdown Torque,Class F Insulation,1,15 SF.
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foot Notes |
| 2 |
1100 |
184T |
230-460/796 |
OWW026 |
﹩682 |
81.0 |
6.32/3.16 |
66 |
16.14 |
? |
| 825 |
184T |
230-460/796 |
OWW028 |
﹩895 |
75.0 |
7.24/3.62 |
67 |
16.4 |
? |
| 3 |
1100 |
213T |
230-460/796 |
OWW036 |
﹩739 |
82.0 |
9.0/4.5 |
105 |
18.93 |
? |
| 825 |
213T |
230-460/796 |
OWW038 |
﹩1,038 |
78.0 |
12.0/6.0 |
98 |
20.51 |
? |
| 5 |
1100 |
215T |
230-460/796 |
OWW056 |
﹩876 |
84.0 |
14.6/7.3 |
125 |
20.51 |
? |
| 825 |
254T |
230-460/796 |
OWW058 |
﹩1,502 |
81.0 |
20.0/10.0 |
238 |
23.95 |
? |
| 7.5 |
1125 |
254T |
230-460/796 |
OWW7.56 |
﹩1,192 |
86.0 |
21.2/10.6 |
260 |
23.95 |
? |
| 900 |
256T |
230-460/796 |
OWW7.58 |
﹩1,808 |
83.0 |
26.6/13.3 |
260 |
25.72 |
? |
| 10 |
1110 |
256T |
230-460/796 |
OWW106 |
﹩1,445 |
86.0 |
28.46/14.23 |
266 |
26.77 |
? |
| 830 |
284T |
230-460/796 |
OWW108 |
﹩2,407 |
85.5 |
35.6/17.8 |
325 |
26.77 |
? |
| 15 |
1115 |
284T |
230-460/796 |
OWW156 |
﹩1,879 |
87.5 |
41.2/20.6 |
343 |
27.56 |
? |
| 850 |
286T |
230-460/796 |
OWW158 |
﹩2,828 |
87.5 |
49.8/24.9 |
370 |
27.56 |
? |
| 20 |
1115 |
286T |
230-460/796 |
OWW206 |
﹩2,292 |
89.0 |
51.8/25.9 |
376 |
31.43 |
? |
| 850 |
324T |
230-460/796 |
OWW208 |
﹩3,402 |
88.0 |
66.6/33.3 |
502 |
31.43 |
? |
| 25 |
1135 |
324T |
230-460/796 |
OWW256 |
﹩2,697 |
90.0 |
64.0/32.0 |
525 |
31.43 |
? |
| 830 |
326T |
230-460/796 |
OWW258 |
﹩3,694 |
90.0 |
80.2/40.1 |
558 |
31.43 |
? |
| 30 |
1135 |
326T |
230-460/796 |
OWW306 |
﹩3,161 |
90.0 |
75.4/37.7 |
563 |
33.07 |
? |
| 830 |
364T |
230-460/796 |
OWW308 |
﹩4,961 |
90.5 |
93.6/46.8 |
652 |
33.07 |
? |
| 40 |
1130 |
364T |
230-460/796 |
OWW406 |
﹩4,232 |
91.5 |
98.0/49.0 |
673 |
34.06 |
? |
| 1130 |
365T |
230-460/796 |
OWW40-365 |
﹩4,289 |
91.5 |
98.0/49.0 |
695 |
34.06 |
? |
| 830 |
365T |
230-460/796 |
OWW408 |
﹩5,719 |
91.5 |
104.2/52.1 |
793 |
34.06 |
? |
| 50 |
1135 |
365T |
230-460/796 |
OWW506 |
﹩5,008 |
91.5 |
122.4/61.2 |
704 |
38.35 |
? |
| 1135 |
405T |
230-460/796 |
OWW50-405 |
﹩5,751 |
91.5 |
129.6/64.8 |
938 |
38.35 |
? |
| 830 |
404T |
230-460/796 |
OWW508 |
﹩7,762 |
91.5 |
129.6/64.8 |
935 |
38.35 |
? |
| 60 |
1140 |
404T |
230-460/796 |
OWW606 |
﹩6,229 |
92.0 |
142.0/71.0 |
968 |
38.35 |
? |
| 830 |
405T |
230-460/796 |
OWW608 |
﹩8,888 |
92.0 |
154.6/77.3 |
999 |
38.35 |
? |
| 75 |
1130 |
405T |
230-460/796 |
OWW756 |
﹩7,537 |
92.5 |
178.0/89.0 |
1038 |
43.73 |
? |
| 1130 |
444T |
230-460/796 |
OWW45-444 |
﹩8,880 |
92.5 |
178.0/89.0 |
1256 |
43.73 |
? |
| 830 |
444T |
230-460/796 |
OWW758 |
﹩10,503 |
92.5 |
187.6/93.8 |
1363 |
43.73 |
? |
| 100 |
1130 |
444T |
230-460/796 |
OWW1006 |
﹩9,987 |
92.8 |
236.0/118.0 |
1342 |
43.73 |
? |
| 125 |
1130 |
445T |
230-460/796 |
OWW1256 |
﹩11,230 |
93.8 |
291.6/145.8 |
1550 |
45.7 |
? |
|
